The ultimate system

for purifying men’s mikva water

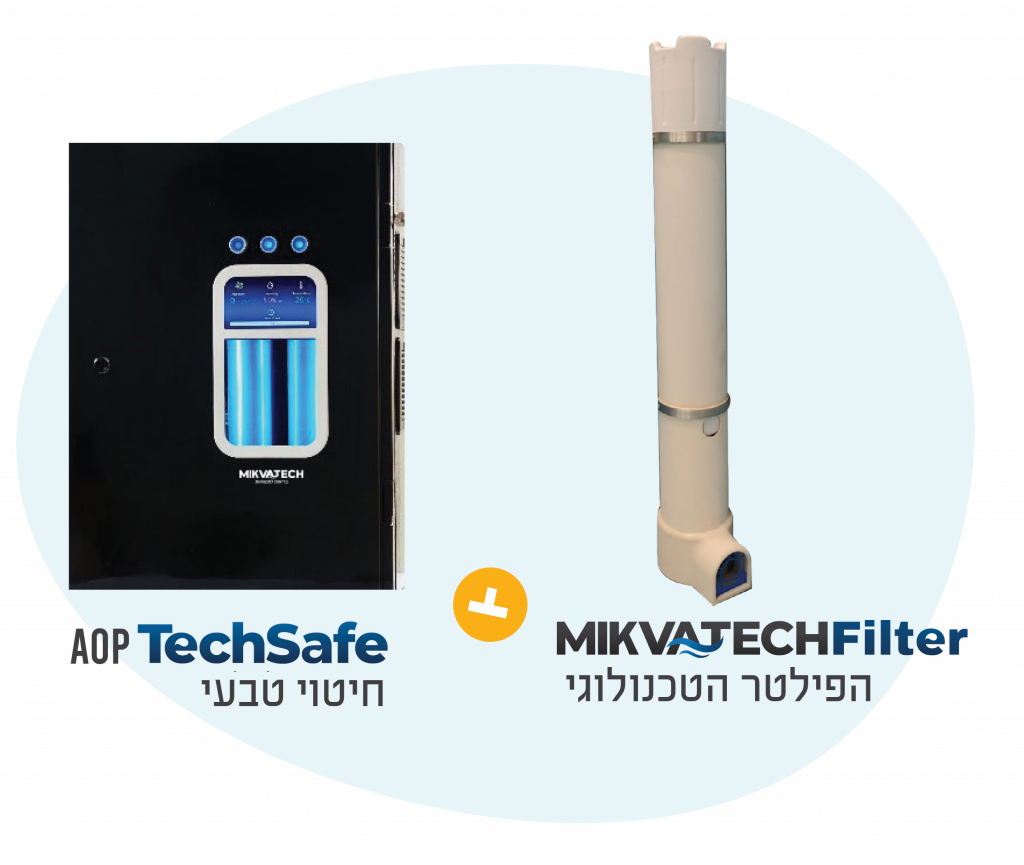

The system is comprised of two complementary machines which work together as a complete water purification system:

1)Oxidation Unit

2)MikvaTech Fixed Filter

1) Oxidation Unit

Our proprietary technology was developed with the Israeli governmental Innovation Authority and is used in various water treatment applications around the world. The machin kills bacteria, viruses (including Coronavirus) and other pathogens while destroying the toxic by-products of chlorine/bromine. It thereby also reduces the eye/skin/breathing irritation and smell caused by chemical disinfectants.

MikvaTech’s oxidation technology is the only oxidation system that is approved by the Israeli Ministry of Health for use in mikvaot.

Kills bacteria viruses and pathogens including Coronavirus

Minimal maintenance

Built-in timer

Destroys toxic chemical by-products and reduces eye, skin and respiratory irritation from chlorine

Decreases “chlorine-odor”

The oxidation unit operates on a built-in timer and is commonly operated throughout the night when the mikva is not in use. The machine itself is installed in a machine/otzar room outside of the water. A 0.32” air pipe exits from the machine and is placed in the water. The radicals are diffused into the water through this small pipe and destroy the pathogens and organic matter in the water. The contaminants are oxidized and float to the water’s surface and are collected by the MikvaTech Fixed Filter.

Approved by leading rabbinical authorities and used by hundreds of women and men mikvaot worldwide.


Used in a variety of applications including the largest and most prestigious infinity swimming pool in the world, the Marina Bay Sands Singapore skypark pool.

Model Voltage Watt Dimensions (inch) Weight (lbs) Daily Tovlim Size of Bor Tevila (US gal)
APSM450 120-240V


90W 16X24X8 27 <150 1,600
APSM900 120-240V


220W 20X28X10 40 <350 2,100

2) MikvaTech Fixed Filter

Developed by our leading engineers in conjunction with prominent Rabbanim, our proprietary fixed mikva filter is superior operationally and more mehudar halachically over other fixed filters that exist in mikvaos. Our filters operate using electronic speed controller brushless underwater motors and thrusters. We do not use external carbon brush motors. Due to this, our filters do not have as many consumables and have a smaller footprint in the mikva. They are more mehudar with shfoferes hanod at all areas in the filter.

International patent pending.


  • Underwater brushless motor
  • Does not require carbon brush and coupling replacement
  • Smaller footprint
  • More aesthetic
  • Quieter than other filters
  • Mehudar with Shfoferes Hanod the entire length
  • Made in Israel

Size of Bor Tevila (US gal)

Daily Tovlim

Dimensions (inch)


Operating Voltage

Input Voltage



800 <10 7x8x46 80W Filter Body FL10
12x10x6 24V 120V-230V 50/60Hz Control Panel
1,100 <75 7x8x46 120W Filter Body FL75
12x10x6 28V 120V-230V 50/60Hz Control Panel
1,600 <150 7x8x46 200W Filter Body FL150
12x10x6 28V 120V-230V 50/60Hz Control Panel
3,200 <300 2 X 7x8x46 2 X 200W Filter Body FL300

(2 x FL150)

2 X 12x10x6 28V 120V-230V 50/60Hz Control Panel
